WICLINE 70 SG

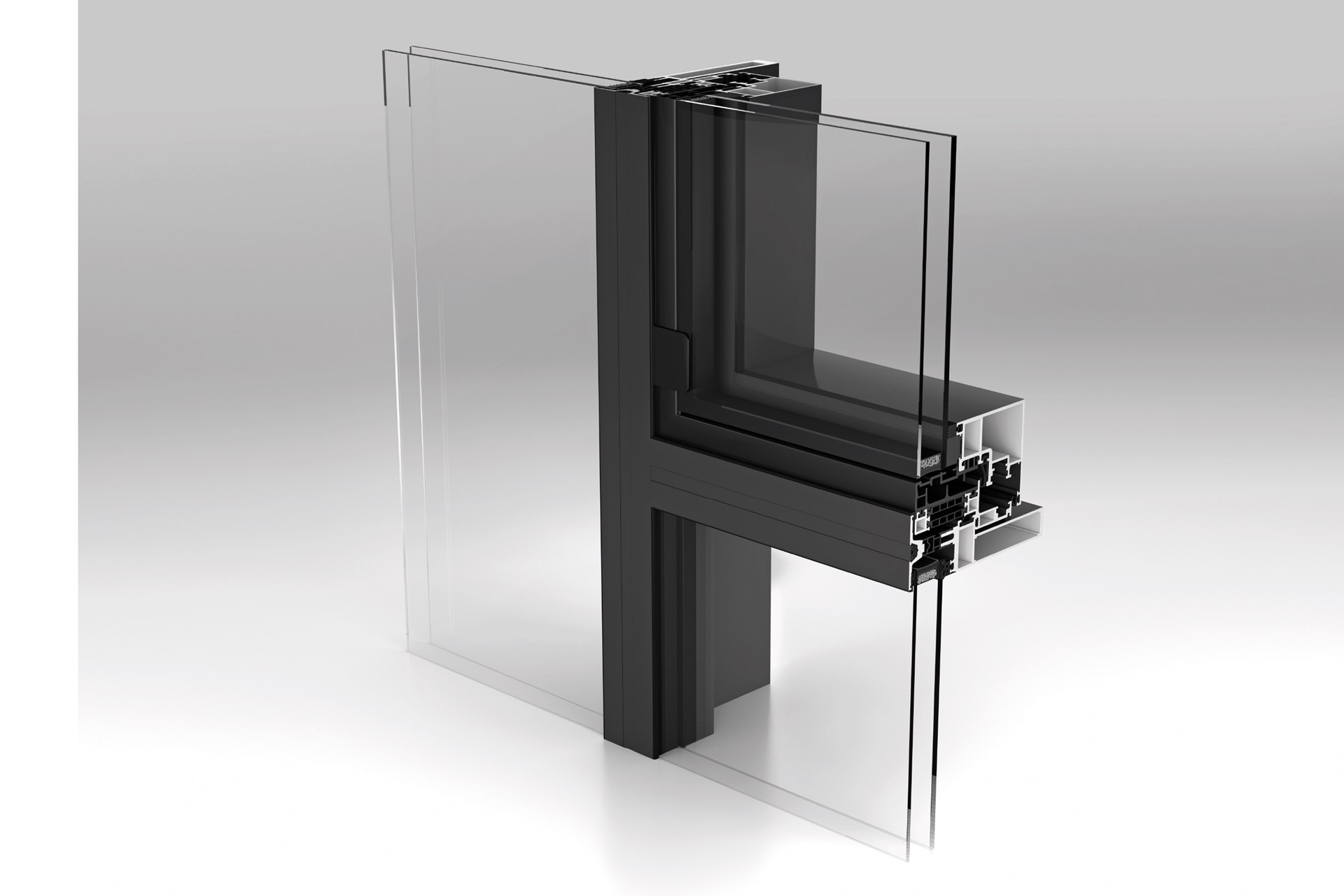

Maximising daylight with minimal sight lines. The outer frame of the WICLINE 70 SG window blends seamlessly into the mullion and transom profiles of the curtain wall, with only the glazing of the opening sash visible from the outside, blurring the boundaries between fixed glazing and opening elements. Specially designed mullion and transom profiles for WICTEC 50 system have been created to facilitate this integration, allowing opening elements to be combined with a conventional curtain wall.
Documentation
Characteristics
System test results / CE product pass in accordance with EN 14351-1:2006+A2:2016
Air permeability
Water tightness
Resistance to wind load
Acoustic Performance
Mechanical strength
Repeated opening / closing
Impact resistance
Operating forces
Thermal insulation Uf
Class 4
E750
Class C4 / B4
Rw (C; Ctr) = 48 (-2; -5) dB
Class 2
Class 2 (10 000 cycles)
Class 1
Class 1
up to Uf = 1.0 W/(m2K)
Technical performance
Profile technology
- Inward opening window
- Structurally glazed
- Concealed insertion frame
- Fully concealed hinges
- Infill thicknesses of 27-39 mm and 45-57 mm
- 3 design options for individual façades
- Can be combined with WICTEC 50 stick system curtain wall
Hardware
- Concealed hinges with integrated end position damping, max. opening angle 105°
- Optional opening limiter
- Sash sizes (w x h) up to 1 000 mm x 2 500 mm
- Sash weight up to 160 kg
Opening types
Inward opening
- Turn, Turn-Tilt, Tilt, Tilt-First (Hardware up to 160 kg)
- Turn, Turn-Tilt (Hardware up to 200 kg)
